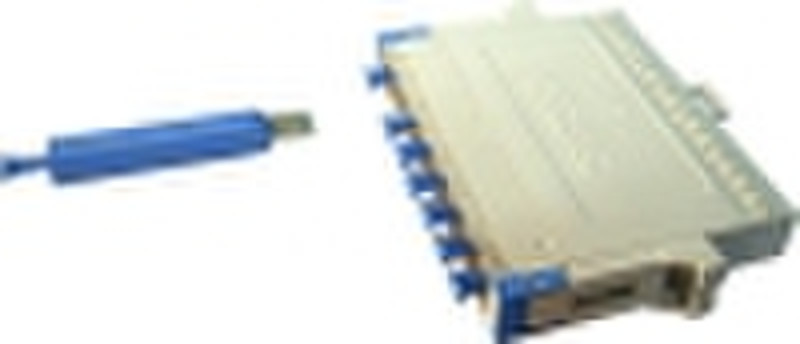

MDF MODULE

2.2.1 Standard Fully meet YD/T694-2004 Main Distribution Frame requirements. 2.2.2 Applicable conducting wires Single-strand plastic conducting wires with the core diameter of 0.32∼0.6 mm and the maximum outside diameter of no more than 1.4 mm (including the insulation layer). 2.2.3 Plug-pull life>200 times 2.2.4 Insulation Resistance After experiments in high temperature, low temperature, changing temperature and humid& hot surrounding under standard testing atmosphere pressure, between any two unconnected terminals or between one termination and one fixed metal equipment, insulated resistance is not less than 1000M. 2.2.5 Dielectric strengthen After experiments in high temperature, low temperature, changing temperature and humidity surrounding under standard testing atmosphere pressure, between any two unconnected terminals or between one terminal and one metal fixed equipment, can endure 45∼60Hzsimilar to sine wave, AC virtual value 1000V,1 minute without spark and flying-arc.
